| 제품명 | YK-SWAS |
|---|
제품설명

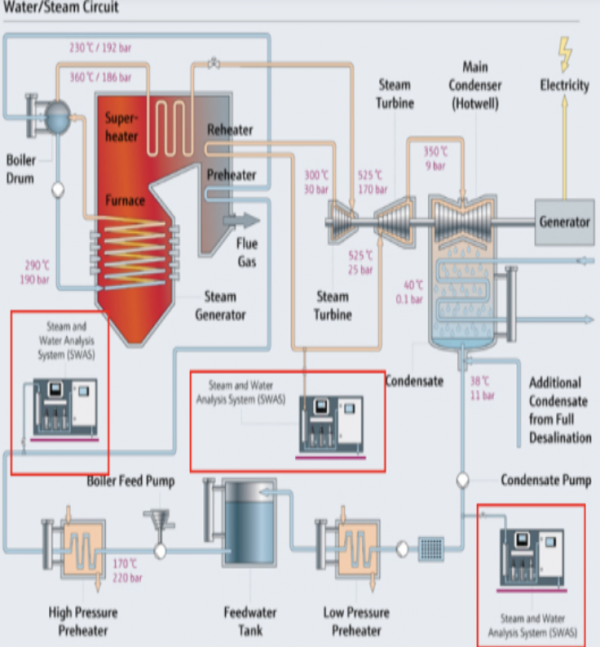

Application Area
- Power Plant : Fossil, HRSG
- Boiler feed water, Steam Monitoring Refinery, Chemical industries
System Features
- Easy Maintenance & Configuration
- SWAS Analyzer (pH,Conductivity,Etc)
| Specification | Details |
|---|---|
| pH Range | 0 - 14 |
| Body material | Ryton |
| Installation | Immersed or on-line (3/4 NPT thread) |
| Connection |
Connection through pH module / 4-20 mA input |
| Sensor cable length |
2.5m, 5m, 10m ELPH: 6m ELPH-D: 6m (possible to increase cable length) |
| Specification | Details |
|---|---|
| Body material | polypropylene |
| Installation | Immersed or on-line (3/4 NPT thread) |
| Connection | Connection through COND module |
| Application | Typical range (µS/cm) |
Recommended Cell constant K |
|---|---|---|
| Ultra-pure water | 0 to 2 | 0.01 |
| Pure water, boiler | 1 to 200 | 0.1 |
| River, tap water | 10 to 2,000 | 1 |
| Sea water, effluents | 1,000 to 200,000 | 10 |
사양
|
Inputs |
1x pH/ORP connector |
|
Outputs |
2x 4-20 mA active outputs |
Relays |
4x electromechanical SPDT (form C) contact 5A |
|
Free socket |
2 free sockets for optional modules among : |
|
Wet part materials |
Depending on probes |
|
Measuring mode |
continuous |
|
Memory |
288 lines of measurement (up to 7 channel) with date and time |
|
Maintenance interval |
Depending on probes |
|
Power supply |
90-264 VAC 50/60Hz 20 VA max |
|
Touch screen |
Colour TFT LCD 480x272 pixels with Led backlight |
|
Communication |
RS232 / RS485 with MODBUS protocol |
|
Certification |
CE, EN61010-1, EN61326 |
|
Enclosure |
IP65, Aluminium with Epoxy coating |
Weight |
2kg approx. |
